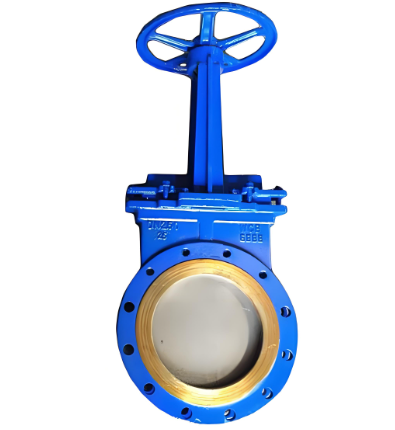

About Our Knife Gate Valves

Our knife gate valves are specifically designed for applications involving abrasive slurries, viscous fluids, and other challenging media. They feature a sharpened blade that cuts through the media, providing excellent sealing performance even with fibrous or particulate-laden fluids.

Constructed from high-quality materials including ductile iron and stainless steel, our knife gate valves offer superior durability and corrosion resistance. They are widely used in industries such as mining, pulp and paper, chemical processing, and wastewater treatment.

Materials

Ductile Iron, Stainless Steel

Size Range

DN50 - DN800

Pressure Rating

PN10, PN16

Connection Type

Wafer, Lug, Flanged

Our Knife Gate Valve Models

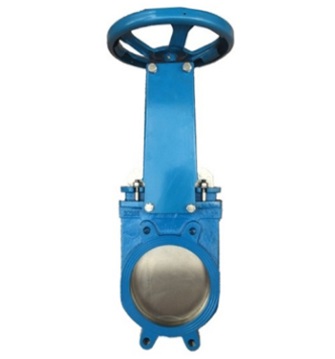

DIN Wafer Knife Gate Valve

Wafer type knife gate valve with DIN connection, suitable for general industrial applications.

View Details DIN

DIN Lug Knife Gate Valve

Lug type knife gate valve with DIN connection, providing easy installation and maintenance.

View Details DIN

ANSI Wafer Knife Gate Valve

Wafer type knife gate valve with ANSI connection, designed for high-pressure applications.

View Details ANSI

ANSI Lug Knife Gate Valve

Lug type knife gate valve with ANSI connection, offering excellent sealing performance.

View Details ANSI

Technical Specifications

Specification	KGV100	KGV200	KGV300
Size Range	DN50 - DN400	DN50 - DN600	DN50 - DN800
Pressure Rating	PN10	PN16	PN10
Body Material	Ductile Iron	Ductile Iron	Ductile Iron
Blade Material	Stainless Steel 304	Stainless Steel 316	Stainless Steel 316
Seat Material	EPDM	NBR	Polyurethane
Connection Type	Wafer, Lug	Flanged	Wafer, Lug, Flanged
Operating Temperature	-20°C to 120°C	-20°C to 150°C	-30°C to 80°C
Operating Method	Handwheel	Gearbox	Pneumatic Actuator

Applications

Mining Industry

Ideal for handling slurry, tailings, and other abrasive materials in mining operations.

Pulp & Paper

Suitable for paper stock, pulp, and chemical processing in paper mills.

Chemical Processing

Excellent for handling corrosive and viscous chemicals in processing plants.

Wastewater Treatment

Perfect for sewage, sludge, and other wastewater applications.

Installation and Maintenance

Installation Guidelines

Ensure the valve is installed in the correct orientation with the flow direction arrow on the body.
The valve should be installed in a horizontal position with the stem vertical.
Before installation, clean the pipeline to remove any debris or foreign matter.
Use appropriate gaskets between flanges to ensure a proper seal.
Tighten flange bolts uniformly in a crisscross pattern to ensure even pressure.
Ensure there is sufficient space around the valve for operation and maintenance.
After installation, test the valve for leaks before putting it into service.

Maintenance Recommendations

Regularly inspect the valve for leaks, corrosion, or other damage.
Lubricate the stem and other moving parts periodically to ensure smooth operation.
Check the packing gland regularly and tighten if necessary to prevent leaks.
Keep the valve in either fully open or fully closed position when not in use for extended periods.
Clean the valve body and external parts regularly to prevent buildup of dirt and debris.
For valves in critical applications, consider implementing a preventive maintenance program.
If the valve is not operating properly, consult the technical manual or contact our support team.

Need More Information?

Our technical team is ready to help you select the right knife gate valve for your specific application. Contact us today for expert advice and personalized solutions.
