Gate Valves

High-quality ductile iron gate valves for various industrial applications, designed for reliable performance and long service life.

Gate Valve

About Our Gate Valves

Our ductile iron gate valves are designed for use in various industrial applications, including water treatment, chemical processing, power generation, and oil & gas. They are manufactured using high-quality materials and advanced production techniques to ensure reliable performance and long service life.

Gate valves are ideal for applications requiring full flow with minimal pressure drop. They provide excellent sealing performance and are suitable for both on/off and throttling service.

Materials

Ductile Iron Body, Stainless Steel Trim

Size Range

DN50 - DN600

Pressure Rating

PN10, PN16, PN25

Connection Type

Flanged

Our Gate Valve Models

DIN Resilient Seated NRS Gate Valve

DIN Resilient Seated NRS Gate Valve

Non-rising stem gate valve with resilient seat, conforming to DIN standards.

View Details DIN

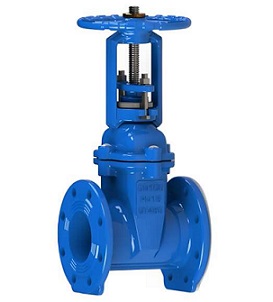

DIN Resilient Seated RS Gate Valve

DIN Resilient Seated RS Gate Valve

Rising stem gate valve with resilient seat, providing excellent sealing performance.

View Details DIN

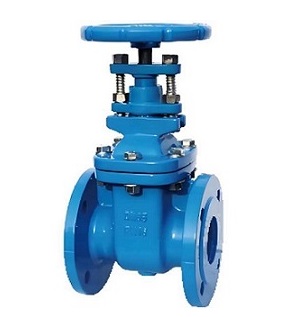

DIN Metal Seated NRS Gate Valve

DIN Metal Seated NRS Gate Valve

Non-rising stem gate valve with metal seat for high-temperature applications.

View Details DIN

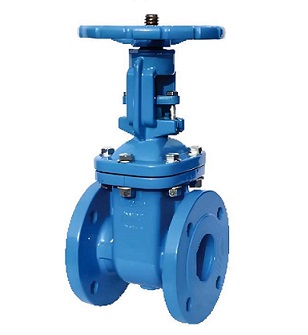

DIN Metal Seated RS Gate Valve

DIN Metal Seated RS Gate Valve

Rising stem gate valve with metal seat, suitable for high-pressure systems.

View Details DIN

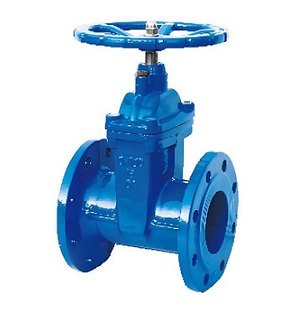

BS Resilient Seated NRS Gate Valve

BS Resilient Seated NRS Gate Valve

Non-rising stem gate valve with resilient seat, meeting BS5163 standards.

View Details BS
BS Resilient Seated RS Gate Valve

BS Resilient Seated RS Gate Valve

Rising stem gate valve with resilient seat, designed for potable water systems.

View Details BS

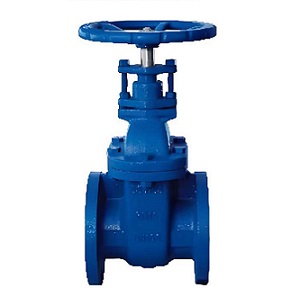

BS Metal Seated NRS Gate Valve

BS Metal Seated NRS Gate Valve

Non-rising stem gate valve with metal seat, suitable for industrial applications.

View Details BS
BS Metal Seated RS Gate Valve

BS Metal Seated RS Gate Valve

Rising stem gate valve with metal seat, offering durability and reliability.

View Details BS

Technical Specifications

Specification GV100 GV200 GV300
Size Range DN50 - DN300 DN50 - DN400 DN200 - DN600
Pressure Rating PN10 PN16 PN25
Body Material Ductile Iron Ductile Iron Ductile Iron
Bonnet Material Ductile Iron Ductile Iron Ductile Iron
Disc Material Ductile Iron with Rubber Coating Ductile Iron with Rubber Coating Ductile Iron with Rubber Coating
Stem Material Stainless Steel 304 Stainless Steel 316 Stainless Steel 316
Seat Material EPDM EPDM/NBR EPDM/NBR
Connection Type Flanged Flanged Flanged
Operating Temperature -20°C to 80°C -20°C to 120°C -20°C to 120°C
Operating Method Handwheel Handwheel/Gearbox Gearbox/Electric Actuator

Applications

Water Treatment

Used in water treatment plants for flow control and system isolation.

Chemical Industry

Suitable for handling various chemical solutions in processing plants.

Power Generation

Used in power plants for water and steam system control.

Building Services

Ideal for HVAC systems and plumbing in commercial buildings.

Installation and Maintenance

Installation Guidelines

  • Ensure the valve is installed in the correct orientation with the flow direction arrow on the body.
  • The valve should be installed in a horizontal position with the stem vertical.
  • Before installation, clean the pipeline to remove any debris or foreign matter.
  • Use appropriate gaskets between flanges to ensure a proper seal.
  • Tighten flange bolts uniformly in a crisscross pattern to ensure even pressure.
  • Ensure there is sufficient space around the valve for operation and maintenance.
  • After installation, test the valve for leaks before putting it into service.

Maintenance Recommendations

  • Regularly inspect the valve for leaks, corrosion, or other damage.
  • Lubricate the stem and other moving parts periodically to ensure smooth operation.
  • Check the packing gland regularly and tighten if necessary to prevent leaks.
  • Keep the valve in either fully open or fully closed position when not in use for extended periods.
  • Clean the valve body and external parts regularly to prevent buildup of dirt and debris.
  • For valves in critical applications, consider implementing a preventive maintenance program.
  • If the valve is not operating properly, consult the technical manual or contact our support team.
